Female signal and power contact for wire-to-wire connector systems. Rated for 10A contact current and 13A overall current at 250V. Features a tin-plated bronze construction and accommodates 14-20AWG discrete wire with an insulation diameter up to 0.13 inches. Designed for straight cable mounting with crimp termination. Operating temperature range from -67°C to 221°C. Packaged in a bag of 1000 units.
Voltage Rating250V
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 170121-4 technical specifications.
General
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 10A |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 13A |
| ELV | Compliant |
| Gender | Female |
| Insulation Diameter | 0.13inch |
| Lead Free | Not Applicable |
| Length | 17.6mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Commercial MATE-N-LOK |
| Shielding | Unshielded |
| Termination | Crimp |
| VDE Tested | No |
| Voltage Rating | 250V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 170121-4 Datasheet
Download the complete datasheet for TE Connectivity 170121-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

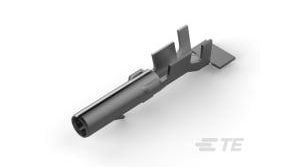

Product Images
