This male, non-insulated quick disconnect terminal features a brass body with tin plating, designed for 14-18 AWG wire. It offers a straight orientation with a 6.35mm mating tab width and a 0.62-inch tab length. The terminal includes insulated wire support and measures 30.3mm in length with a 6.4mm depth. Packaged in tape and reel, this component is RoHS and ELV compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 170151-2 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Contact Plating | Tin |
| Depth | 6.4mm |
| ELV | Compliant |
| Gender | Male |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 4.1mm |
| Lead Free | Not Applicable |
| Length | 1.192inch |
| Material | Brass |
| Mating Tab Width | 6.35mm |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Shrouded | No (Without) |
| Tab Length | 0.62inch |
| Tab Thickness | 0.032inch |
| Tab Width | 0.25inch |
| Termination | Tab |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 170151-2 Datasheet
Download the complete datasheet for TE Connectivity 170151-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

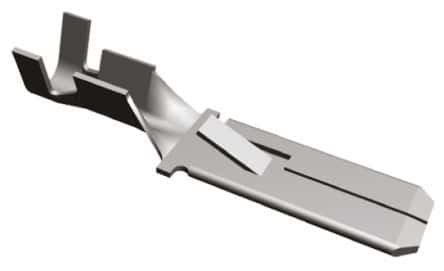

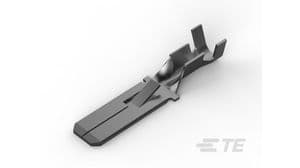

Product Images
