Signal socket contact for wire-to-board connector systems. Features a brass contact material with tin plating and a 0.8um plating thickness. Rated for 2A contact current, 9.5A current, and 600V voltage. Designed for crimp termination with a 1.91mm insulation diameter and supports wire gauges from 26AWG to 20AWG. Operates within a temperature range of -20°C to 105°C.
Voltage Rating600V
Current Rating9.5A
MountingCable
Power475W
Quick Jump:
Technical Specifications
TE Connectivity 170204-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Silver |
| Connector System | Wire-to-Board |
| Contact Current Rating | 2A |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Style | Socket |
| Contact Type | Signal |
| Current Rating | 9.5A |
| ELV | Compliant |
| Height | 178mm |
| Insulation Diameter | 1.91mm |
| Lead Free | Lead Free |
| Length | 11.1mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Output Power | 475W |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| PCB Mount Retention | Without |
| Plating Thickness | 0.8um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | EI |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 120V |
| Weight | 771g |
| Width | 83.8mm |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 26AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 170204-1 Datasheet
Download the complete datasheet for TE Connectivity 170204-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

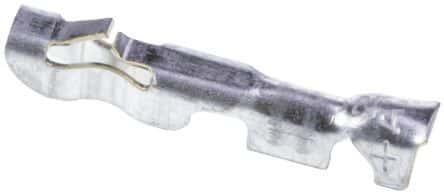

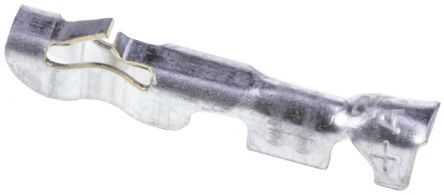

Product Images
