Male, straight, unshielded signal contact for 22-18 AWG discrete wire, featuring brass construction with tin plating. This power-rated component offers a 7A contact current rating and 9.5A overall current rating, suitable for wire-to-wire connector systems. Operating within a -20°C to 105°C temperature range, it supports up to 600V AC and is RoHS compliant. Designed for crimp termination, it is supplied on tape and reel for automated assembly.
Voltage Rating600V
Current Rating9.5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 170360-1 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 7A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 9.5A |
| Depth | 3.6mm |
| ELV | Compliant |
| Gender | Male |
| Height | 4.4mm |
| Insulation Diameter | 0.134inch |
| Lead Free | Lead Free |
| Length | 17.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Plating Thickness | 0.8um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mini-Universal MATE-N-LOK |
| Shielding | Unshielded |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 170360-1 Datasheet
Download the complete datasheet for TE Connectivity 170360-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

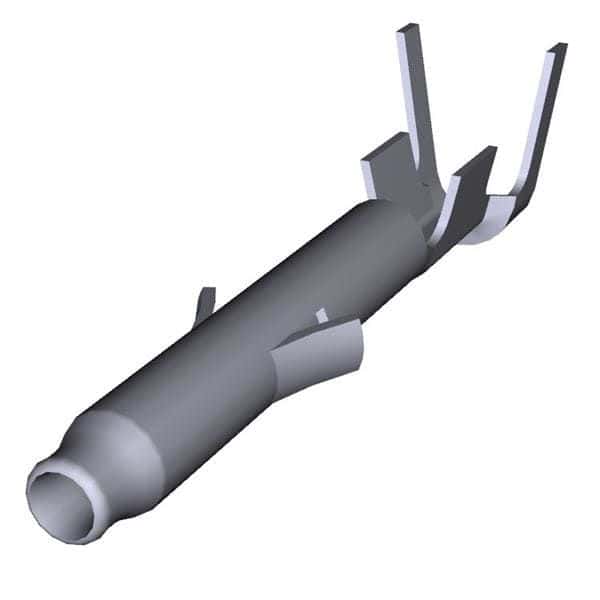

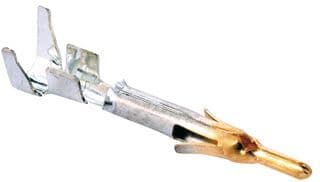

Product Images
