170363-1

Datasheet

26 Pos Male Signal/Power Connector, 7A/9.5A, 600V, 2.54mm Pitch

TE Connectivity

170363-1

Name: 170363-1 TE Connectivity
Brand: TE Connectivity
SKU: 170363-1

26 Pos Male Signal/Power Connector, 7A/9.5A, 600V, 2.54mm Pitch

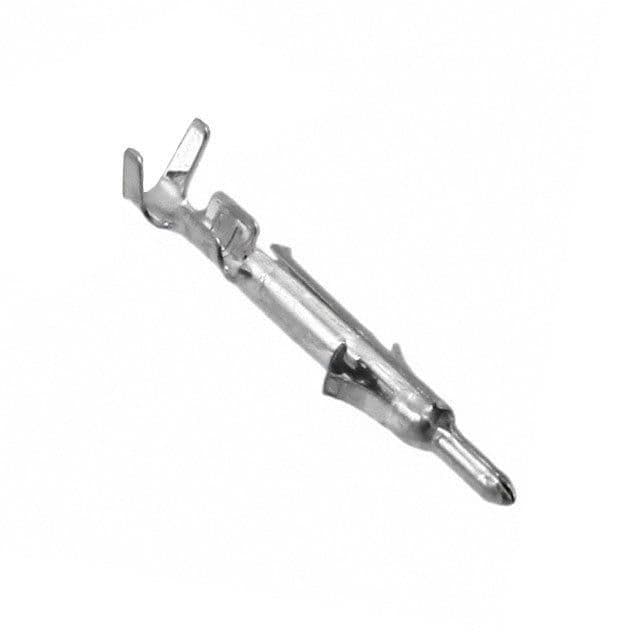

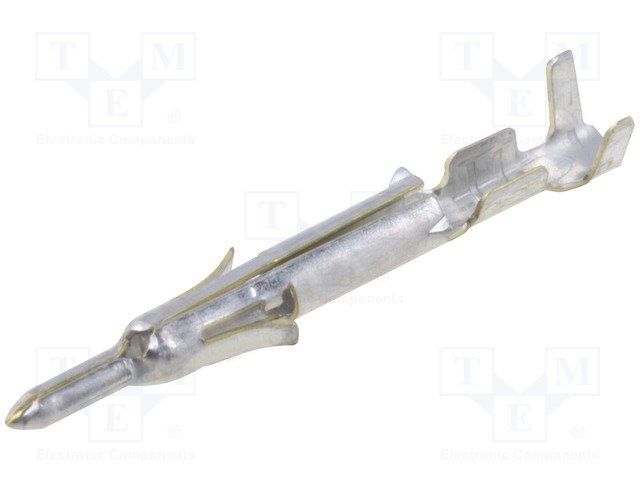

Male, straight orientation, wire-to-wire connector with 26 contacts arranged in 2 rows, featuring brass, tin-plated signal contacts. This power circuit application component offers a 7A contact current rating and a 9.5A overall current rating, with a 600V voltage rating. Designed for discrete wire termination via crimp, it accommodates wire gauges from 22AWG to 26AWG with an insulation diameter of 1.75mm. Operating within a -20°C to 105°C temperature range, this unshielded, black housing component is RoHS compliant and VDE tested.

Voltage Rating600V

Current Rating9.5A

MountingCable, Through Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 170363-1 technical specifications.

General

Approvals	UL
Circuit Application	Power
Connector System	Wire-to-Wire
Contact Current Rating	7A
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Type	Signal
Current Rating	9.5A
Depth	2.8mm
Diode Type	PIN
ELV	Compliant
Gender	Male
Height	2.9mm
Housing Color	Black
Insulation Diameter	1.75mm
Lead Free	Lead Free
Length	17.5mm
Max Operating Temperature	105°C
Min Operating Temperature	-20°C
Max Voltage Rating (AC)	600V
Mount	Cable, Through Hole
Number of Contacts	26
Number of Rows	2
Orientation	Straight
Package Quantity	300
Packaging	Bag
Pitch	2.54mm
Plating Thickness	0.8um
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Mini-Universal MATE-N-LOK
Shielding	Unshielded
Termination	Crimp
VDE Tested	Yes
Voltage Rating	600V
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	22AWG
Wire/Cable Gauge	26AWG
Wire/Cable Type	Discrete
