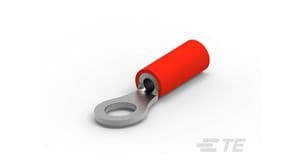

Ring tongue terminal for 18-22 AWG wire, featuring a copper contact with tin plating. Insulated with a red nylon sleeve, it offers a 300V AC voltage rating and a 4.3mm stud diameter (M4). This free-hanging terminal has a 20.3mm length and 16.7mm tongue length, with a 0.14-inch insulation diameter. It is RoHS compliant and includes insulated wire support.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 171508-5 technical specifications.
General
Color
Red
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Diameter
0.14inch
Lead Free
Not Applicable
Length
20.3mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Package Quantity
100
Packaging
Bag
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
4.3mm
Stud Size
M4
Termination
Crimp
Thickness
0.031inch
Tongue Thickness
0.0312inch
Voltage Rating (AC)
300V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
18AWG
Wire/Cable Diameter
3.56mm
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 171508-5 Datasheet
Download the complete datasheet for TE Connectivity 171508-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
