Female signal and power contact for wire-to-wire connector systems. Features a 7A contact current rating and 9.5A overall current rating, supporting 16-20AWG discrete wire with a 0.094-inch insulation diameter. Constructed from brass with tin plating, this straight, unshielded contact is rated for 600V AC and operates between -20°C and 105°C. UL and VDE tested, RoHS compliant, and supplied in a bag of 300.
Voltage Rating600V
Current Rating9.5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 171639-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
7A
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Type
Signal
Current Rating
9.5A
Depth
4.3mm
ELV
Compliant
Gender
Female
Height
4.95mm
Insulation Diameter
0.094inch
Lead Free
Lead Free
Length
18mm
Material
Brass
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Positions
1
Orientation
Straight
Package Quantity
300
Packaging
Bag
Pitch
4.14mm
Plating Thickness
0.8um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Mini-Universal MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
16AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 171639-1 Datasheet
Download the complete datasheet for TE Connectivity 171639-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

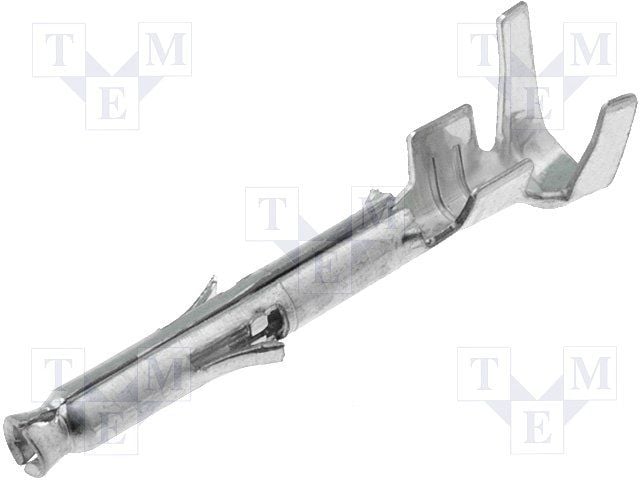

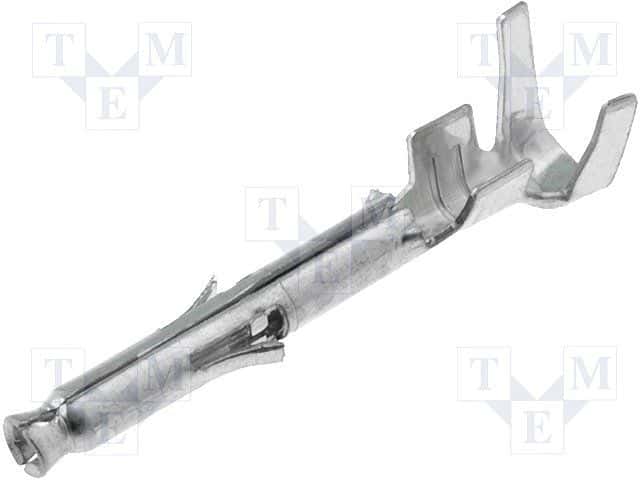

Product Images
