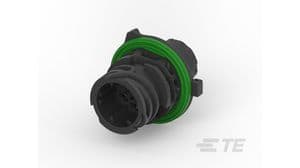

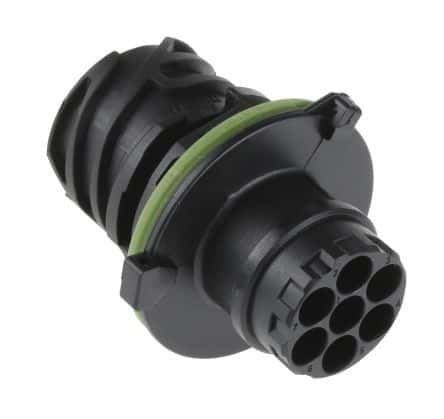

This 1.5mm system wire-to-wire connector assembly features a male, straight orientation with 7 positions and 7 male crimp contacts. Constructed from black PBT housing, it offers a signal circuit application and a mating tab width of 0.059 inches. Rated IP67 and IP69, this waterproof, water-resistant, and dust-tight connector is designed for panel, bulkhead, rear side nut, and cable mounting, operating within a temperature range of -40°C to 248°C. The connector is RoHS compliant and has a flammability rating of UL94 HB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1718230-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1718230-1 technical specifications.
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Shape | Circular |
| Contact Type | CRIMP |
| Depth | 34mm |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Height | 39.26mm |
| Housing Color | Black |
| Hybrid Connector | No |
| Lead Free | Not Applicable |
| Length | 39.2mm |
| Material | Polybutylene |
| Mating Tab Width | 0.059inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Bulkhead, Rear Side Nut, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Orientation | Straight |
| Package Quantity | 450 |
| Packaging | Loose Piece |
| Pitch | 11.4mm |
| Polarized | No |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Water Resistant, Dust Tight, IP69 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | 1.5mm System |
| Serviceable | Yes |
| Shell Material | PBT |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 1.732inch |
| RoHS | Compliant |
