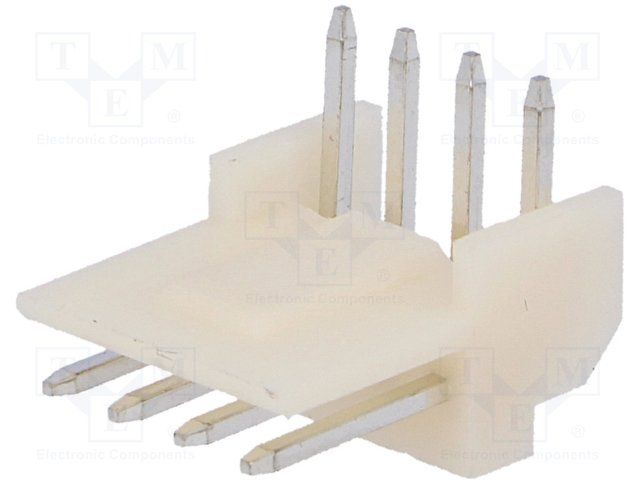

4 Pos 2.5mm Pitch Male Pin Header, Right Angle, Through Hole

Right-angle, horizontal PCB mount header assembly featuring 4 male pin contacts on a 2.5mm pitch. This component offers a 3.5A contact current rating with brass contacts plated in copper and tin, and a 7.5mm mating length. Constructed with a natural colored housing, it operates within a -20°C to 95°C temperature range and boasts UL and UL94 V-0 flammability ratings. Termination is via solder, with a 0.142-inch tail length and a 0.063-inch PCB thickness compatibility.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 171826-4 technical specifications.

General

Approvals	UL
Backwall/Post Interruptions	No (Without)
Color	Natural
Contact Current Rating	3.5A
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	7.5mm
Contact Plating	Copper, Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Type	Male Pin
Depth	13.5mm
Flammability Rating	UL94 V-0
Height	0.264inch
Housing Color	Natural
Lead Pitch	2.5mm
Length	10mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	95°C
Min Operating Temperature	-20°C
Mount	Through Hole
Number of Contacts	4
Number of Positions	4
Number of Rows	1
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Horizontal
PCB Thickness	0.063inch
Pitch	2.5mm
Plating Thickness	0.8um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	EI
Strain Relief	No (Without)
Tail Length	0.142inch
Termination	Solder
