6-position, 2-row, straight receptacle housing for 250 series connectors. Constructed from natural colored, UL94 V-0 rated nylon for insulation and body material. Features quick connect termination and accepts wire/cable up to 4AWG. Designed for free-hanging mounting with mating retention. ELV and RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 171898-1 technical specifications.
General
| Body Material | Nylon |
| Color | Natural |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Natural |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 0.984inch |
| Material | Nylon |
| Mating Retention | Yes (With) |
| Mount | Free Hanging |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 9mm |
| RoHS Compliant | Yes |
| Series | 250 |
| Termination | Quick Connect |
| Wire/Cable Gauge | 4AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 171898-1 Datasheet
Download the complete datasheet for TE Connectivity 171898-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

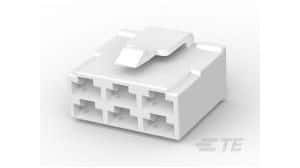

Product Images
