5-position, 2-row shrouded header with a 7mm pitch, designed for board-to-board applications. Features brass contacts with tin plating, offering a 10A current rating and a straight, through-hole mounting orientation. Constructed with a natural nylon housing and insulation, this connector operates within a temperature range of -30°C to 105°C and supports a voltage rating of 350V. Termination is via solder, with a mating contact finish of tin.
Voltage Rating350V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 172037-1 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating | 10A |
| Depth | 16.7mm |
| ELV | Compliant |
| Gender | Female |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Length | 23.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 350.25kV |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1400 |
| Packaging | Bulk |
| Pitch | 7mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.236inch |
| Series | MIC (Multi-Interlock) |
| Termination | Solder |
| Voltage Rating | 350V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172037-1 Datasheet
Download the complete datasheet for TE Connectivity 172037-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

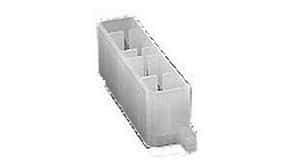

Product Images
