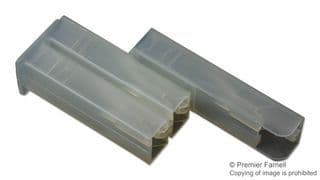

3-position, 1-row, straight receptacle connector for wire-to-wire applications. Features a 6mm pitch and 6.35mm tab width with quick connect termination. Constructed with a natural colored nylon body, rated UL94 V-2 for flammability. Includes mating alignment and retention features, designed for free hanging, cable mounting.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 172075-1 technical specifications.
General
| Body Material | Nylon |
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Depth | 43.7mm |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| Insulation | Insulated |
| Length | 19.45mm |
| Material | Nylon |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Pitch | 6mm |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mark II |
| Tab Width | 6.35mm |
| Termination | Quick Connect |
Compliance
| RoHS | Compliant |
