2-circuit wire-to-wire receptacle connector with straight orientation and 4.2mm pitch. Features male or female pin contact style, 9.5A current rating, and 600V AC voltage rating. Constructed from UL94 V-0 rated nylon, this connector operates between -20°C and 105°C, is RoHS compliant, and CSA and VDE tested. Panel mountable with a 23.7mm length, 11.8mm height, and 11.95mm width, it accepts wire gauges from 30AWG to 16AWG.
Voltage Rating600V
Current Rating9.5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 172157-1 technical specifications.
General
Approvals
CSA
Color
Natural, White
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Retention
No (Without)
Contact Style
Pin
Contact Type
Male or Female
Current Rating
9.5A
Depth
23.7mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
11.8mm
Housing Color
White
Lead Free
Lead Free
Length
23.7mm
Material
Nylon
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
600V
Mount
Panel
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
500
Packaging
Bag
Panel Thickness
0.078inch
Pitch
4.2mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Mini-Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
11.95mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 172157-1 Datasheet
Download the complete datasheet for TE Connectivity 172157-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

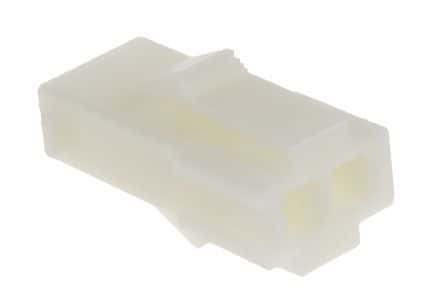

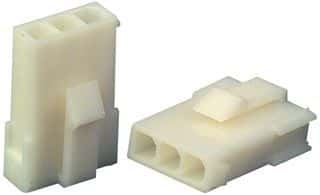

Product Images
