2-position, 1-row wire-to-wire connector housing for cable mounting. Features a 4.2mm pitch and straight orientation, accepting male or female contacts. Rated for 9.5A current and 600V voltage, with a maximum operating temperature of 105°C. Constructed from natural colored nylon, it is UL94 V-0 flammability rated and RoHS compliant.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 172165-1 technical specifications.
General
| Approvals | CSA |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 23.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 5.59mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 23.7mm |
| Material | Nylon |
| Max Current Rating | 9.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Pitch | 4.2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 9.8mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172165-1 Datasheet
Download the complete datasheet for TE Connectivity 172165-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

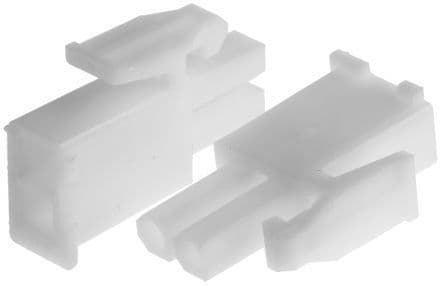

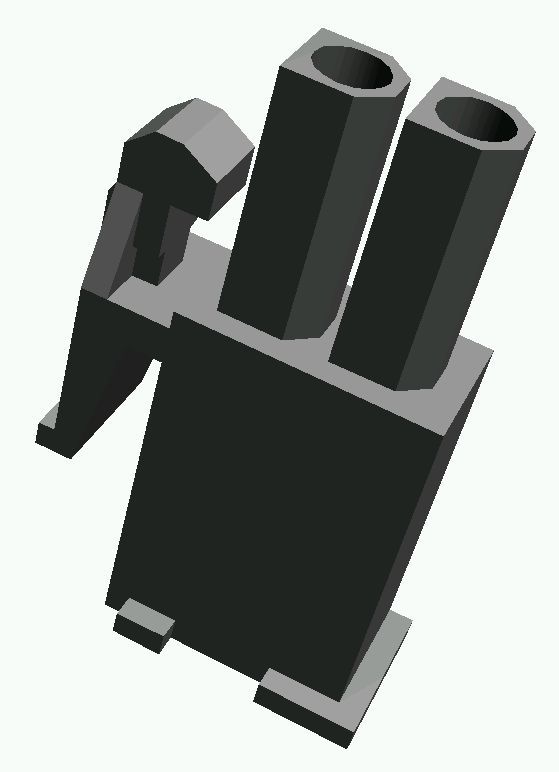

Product Images
