172169-1

Datasheet

9 Cir Wire-to-Wire Plug, 600V, 9.5A, UL94 V-0, Nylon

TE Connectivity

172169-1

Name: 172169-1 TE Connectivity
Brand: TE Connectivity
SKU: 172169-1

9 Cir Wire-to-Wire Plug, 600V, 9.5A, UL94 V-0, Nylon

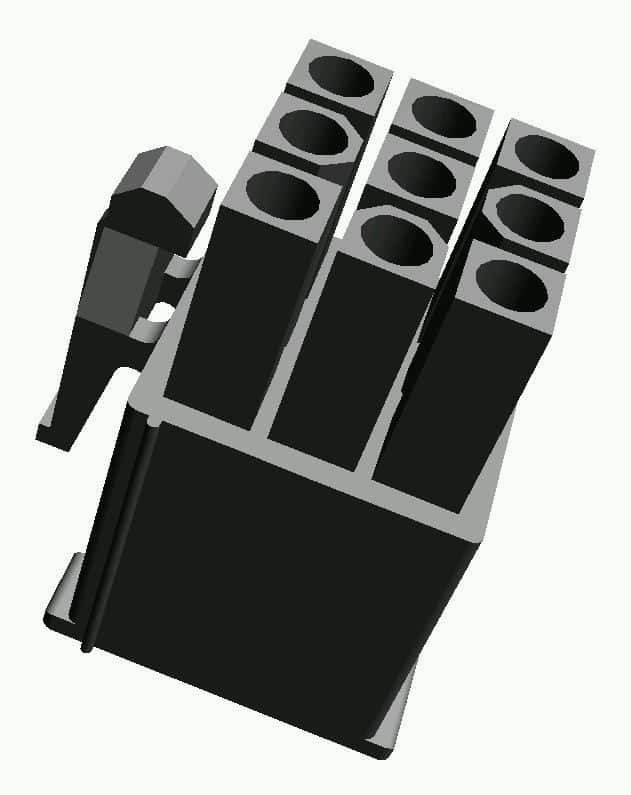

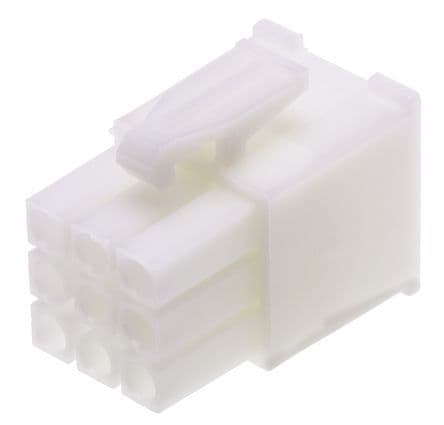

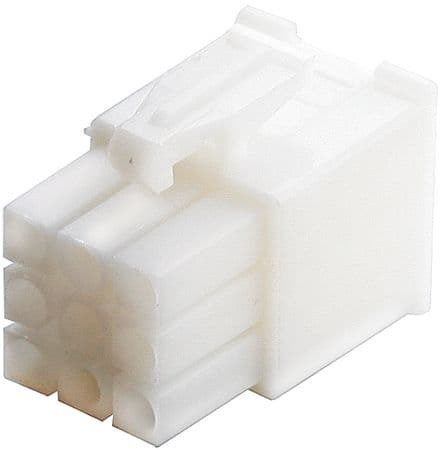

9-circuit wire-to-wire connector plug with male contacts, featuring a straight orientation and free-hanging mount. This connector system supports a current rating of 9.5A and a voltage rating of 600V (AC/DC), with a maximum operating temperature of 105°C. Constructed from natural colored Nylon, it boasts a UL94 V-0 flammability rating and is RoHS compliant. The connector has a 4.2mm pitch and accommodates wire gauges from 30AWG to 16AWG.

Voltage Rating600V

Current Rating9.5A

MountingFree Hanging

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 172169-1 technical specifications.

General

Approvals	CSA
Color	Natural, Beige
Connector System	Wire-to-Wire
Contact Gender	Male
Contact Retention	No (Without)
Contact Style	Socket
Contact Type	Male or Female
Current Rating	9.5A
Depth	23.7mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	14mm
Housing Color	Natural
Lead Free	Lead Free
Length	14mm
Material	Nylon
Max Operating Temperature	105°C
Min Operating Temperature	-20°C
Max Voltage Rating (AC)	600V
Max Voltage Rating (DC)	600.6kV
Mount	Free Hanging
Number of Circuits	9
Number of Contacts	9
Number of Positions	9
Number of Rows	3
Operating Supply Voltage	600V
Orientation	Straight
Package Quantity	500
Packaging	Bag
Pitch	4.2mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	4.2inch
Sealable	No (Without)
Series	Mini-Universal MATE-N-LOK
Termination	Crimp
VDE Tested	Yes
Voltage Rating	600V
DC Rated Voltage	600V
Width	14mm
Wire Gauge (Max)	16AWG
Wire Gauge (Min)	30AWG
