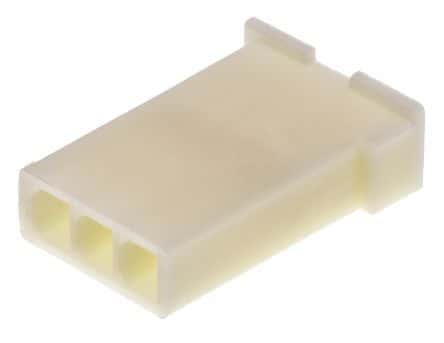

3-position, 1-row wire-to-wire connector housing with a straight orientation. Features a 9.5A current rating and 600V voltage rating, suitable for 30-16 AWG wire. Constructed from UL94 V-0 rated Nylon, this receptacle housing offers tin-plated contacts and a 0.162-inch pitch. Compliant with RoHS and CSA standards, operating between -20°C and 105°C.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 172234-1 technical specifications.
General
| Approvals | CSA |
| Color | Natural, White |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Style | Pin |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 23.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 5.6mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 16.6mm |
| Material | Nylon |
| Max Current Rating | 9.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Panel Thickness | 0.078inch |
| Pitch | 0.162inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 5.6mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172234-1 Datasheet
Download the complete datasheet for TE Connectivity 172234-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
