One-position, straight orientation, cable mount receptacle connector featuring a nylon body and black housing. This free-hanging connector utilizes brass contacts with tin plating and supports a 6.35mm tab width for quick connect termination. Operating within a temperature range of -40°C to 105°C, it boasts UL94 V-2 flammability rating and is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 172320-2 technical specifications.
General
| Body Material | Nylon |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Depth | 24.3mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Not Applicable |
| Length | 10.4mm |
| Material | Nylon |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mark II |
| Tab Width | 6.35mm |
| Termination | Quick Connect |
| Width | 10.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172320-2 Datasheet
Download the complete datasheet for TE Connectivity 172320-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

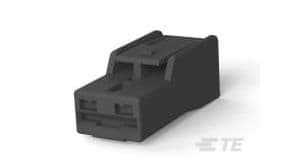

Product Images
