3-position, 1-row female rectangular connector housing for wire-to-wire applications. Features a 4.2mm pitch and straight orientation, accepting male or female contacts with tin plating. Rated for 600V AC, operating between -20°C and 105°C, with a UL94 V-2 flammability rating. This panel-mount housing is lead-free, RoHS compliant, and CSA and VDE tested.
Voltage Rating600V
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 172329-1 technical specifications.
General
| Approvals | CSA |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Depth | 23.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Panel |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Panel Thickness | 0.078inch |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172329-1 Datasheet
Download the complete datasheet for TE Connectivity 172329-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

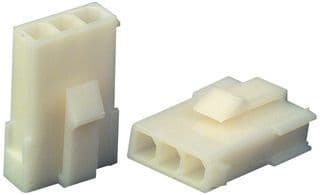

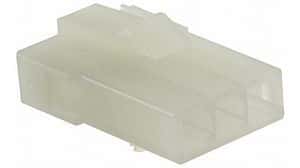

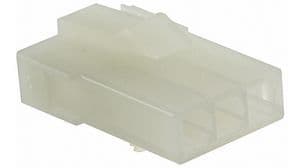

Product Images
