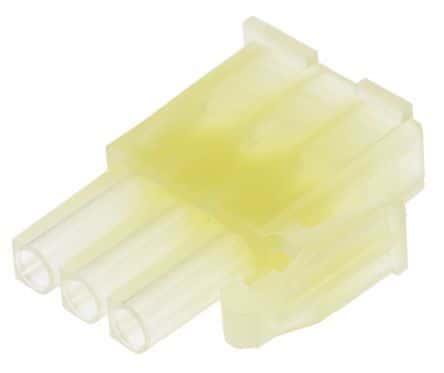

3-position, wire-to-wire connector housing featuring a straight, free-hanging, cable mount orientation. This male connector system utilizes tin-plated socket contacts with a 4.2mm pitch, supporting a 9.5A current rating and up to 600V AC operating voltage. Constructed from UL94 V-2 rated Nylon in a natural beige color, it operates within a -20°C to 105°C temperature range and is RoHS compliant.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 172337-1 technical specifications.
General
| Approvals | CSA |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Style | Socket |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 23.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Material | Nylon |
| Max Current Rating | 9.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 4.2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| DC Rated Voltage | 300V |
Compliance
| RoHS | Compliant |
