Wire-to-wire receptacle connector with a 2-position, 1-row configuration and 4.2mm pitch. Features a straight, free-hanging orientation and crimp termination. Rated for 600V and 9.5A maximum current, operating between -20°C and 105°C. Constructed from natural colored nylon with UL94 V-2 flammability rating. Approved by CSA and VDE tested.
Voltage Rating600V
Current Rating9.5A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 172343-1 technical specifications.
General
| Approvals | CSA |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 23.7mm |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Height | 6.6mm |
| Housing Color | Natural |
| Length | 12.4mm |
| Material | Nylon |
| Max Current Rating | 9.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172343-1 Datasheet
Download the complete datasheet for TE Connectivity 172343-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

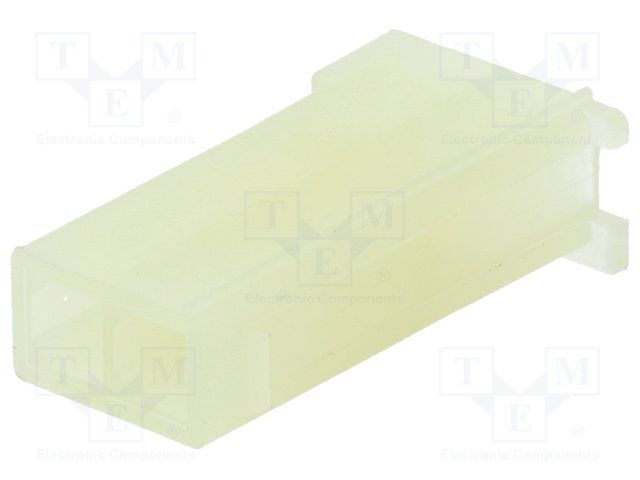

Product Images
