3-position, 4.2mm pitch wire-to-wire connector housing with straight orientation. Features a natural colored, UL94 V-2 flammability rated housing, accepting male or female crimp contacts. Rated for 600V and 13A, with a maximum operating temperature of 105°C. Designed for cable mounting with a free-hanging configuration.
Voltage Rating600V
Current Rating13A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 172344-1 technical specifications.
General
| Approvals | CSA |
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 13A |
| Depth | 23.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Height | 6.6mm |
| Housing Color | Natural |
| Lead Free | Not Applicable |
| Length | 23.7mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 16.6mm |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172344-1 Datasheet
Download the complete datasheet for TE Connectivity 172344-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

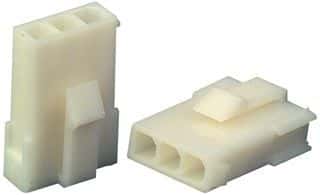

Product Images
