One-position wire-to-wire connector housing, straight orientation, cable mountable and free-hanging. Features a natural colored nylon body with a UL94 V-2 flammability rating and a maximum operating temperature of 221°C. Designed for 22AWG wire with a 6.35mm tab width and quick connect termination. This RoHS compliant receptacle offers mating alignment and retention.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 172469-1 technical specifications.
General
| Body Material | Nylon |
| Color | Natural |
| Connector System | Wire-to-Wire |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| Insulation | Insulated |
| Lead Free | Not Applicable |
| Length | 19mm |
| Material | Nylon, Polyamide, PA66 |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Primary Type | CONNECTOR |
| RoHS Compliant | Yes |
| Series | Mark II |
| Tab Width | 6.35mm |
| Termination | Quick Connect |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172469-1 Datasheet
Download the complete datasheet for TE Connectivity 172469-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

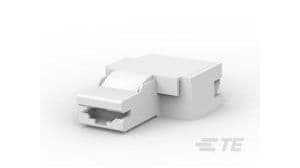

Product Images
