40 Pos SCSI Receptacle, 1.27mm Pitch, RA Thru-Hole, Signal

TE Connectivity

1734037-4

Name: 1734037-4 TE Connectivity
Brand: TE Connectivity
SKU: 1734037-4

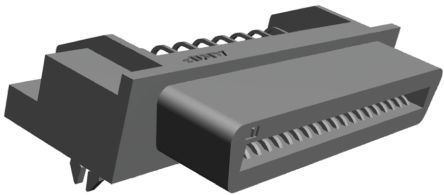

40 Pos SCSI Receptacle, 1.27mm Pitch, RA Thru-Hole, Signal

High-density SCSI receptacle connector, featuring 40 positions and 4 rows with a 1.27mm pitch. This right-angle, through-hole mounted component offers a 1A contact current rating and a 250V voltage rating. Constructed with bronze contacts plated in gold, tin, and matte finishes, it boasts a maximum operating temperature of 185°C and is RoHS compliant. Designed for board-to-board signal applications, it includes PCB mount retention and a 3.1mm contact post length.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1734037-4 technical specifications.

General

Boss	No (Without)
Circuit Application	Signal
Color	Black
Connector System	Board-to-Board
Contact Current Rating	1A
Contact Material	Bronze
Contact Plating	Gold, Tin, Matte
Contact Post Length	3.1mm
Contact Style	Socket
Current Rating	1A
Depth	17.46mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	7.65mm
Housing Color	Black
Lead Free	Lead Free
Lead Length	3.1mm
Length	35.33mm
Mating Alignment	Yes (With)
Max Operating Temperature	185°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	40
Number of Ports	1
Number of Positions	40
Number of Rows	4
Operating Supply Voltage	250V
Orientation	Right Angle
Package Quantity	45
Packaging	Bulk
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	19.304mm
Pitch	0.05inch
Plating Thickness	3.81um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.0749inch
Sealable	No (Without)
Series	CHAMP .050 I
Stackable	No
Tail Length	0.12183inch
Termination	Through Hole
Voltage Rating	250V
Width	7.65mm
