1734742-8

Datasheet

0.5mm Pitch 8 Pos Flex-to-Board Header, Female, SMT, 50V, 500mA

TE Connectivity

1734742-8

Name: 1734742-8 TE Connectivity
Brand: TE Connectivity
SKU: 1734742-8

Active

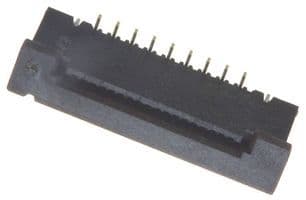

0.5mm Pitch 8 Pos Flex-to-Board Header, Female, SMT, 50V, 500mA

This flex-to-board connector features a 0.5mm pitch and 8 positions with a straight, vertical orientation for surface mounting. It offers a 500mA contact current rating, gold-plated bronze contacts, and a thermoplastic actuator. The connector is designed for flat flex wire/cable types, includes mating alignment, and has a shrouded housing. It operates within a temperature range of -4°C to 185°C and is RoHS compliant.

Voltage Rating50V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Actuator Color	Brown
Actuator Material	Thermoplastic
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Current Rating	500mA
Depth	3.3mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	0.1633inch
Housing Color	Black
Length	9.7mm
Mating Alignment	Yes (With)
Max Operating Temperature	185°C
Min Operating Temperature	-4°C
Max Voltage Rating (AC)	50V
Mount	Surface Mount
Number of Contacts	8
Number of Positions	8
Number of Rows	1
Orientation	Straight
Package Quantity	1000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	0.5mm
Plating Thickness	0.007um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	50V
Width	3.8mm
Wire/Cable Type	Flat Flex
