Contact SKT Crimp ST Cable Mount 16-20AWG T/R Automotive
MountingCable
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TE Connectivity 173631-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TE Connectivity 173631-7 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Signal |
| ELV | Compliant |
| Insulation Diameter | 2.6mm |
| Lead Free | Lead Free |
| Length | 16mm |
| Mating Tab Width | 0.071inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Multi-Lock |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 173631-7 Datasheet
Download the complete datasheet for TE Connectivity 173631-7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

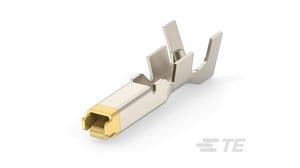

Product Images
