Male, straight orientation signal contact for 22-24 AWG wire. Features brass contact material with tin plating, designed for cable mounting with a crimp termination. Operating temperature range from -22°C to 221°C. Dimensions include 20.7mm length, 4.4mm depth, and 4.2mm height, with a 1.9mm insulation diameter. Packaged on tape and reel, this RoHS compliant component is unshielded and sealable without.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 173633-1 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Signal |
| Depth | 4.4mm |
| ELV | Compliant |
| Gender | Male |
| Height | 4.2mm |
| Insulation Diameter | 1.9mm |
| Lead Free | Lead Free |
| Length | 20.7mm |
| Mating Tab Width | 0.071inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Multilock 070 |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 173633-1 Datasheet
Download the complete datasheet for TE Connectivity 173633-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

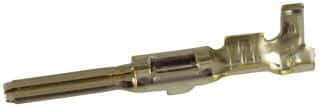

Product Images
