Assembly tool for 070 TAB CONT connectors, featuring male signal contacts made of brass with tin plating. Designed for straight orientation, this component mounts to cable and supports a mating tab width of 0.071 inches. It accommodates wire gauges from 16AWG to 20AWG, with a maximum operating temperature of 221°C and a minimum of -22°C. The tool is RoHS compliant and packaged on a tape and reel for efficient production.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 173645-1 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Signal |
| Depth | 5mm |
| Gender | Male |
| Height | 4.7mm |
| Insulation Diameter | 2.6mm |
| Length | 20.7mm |
| Mating Tab Width | 0.071inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Multi-Lock |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 173645-1 Datasheet
Download the complete datasheet for TE Connectivity 173645-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

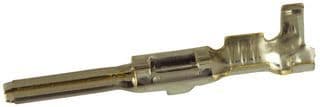

Product Images
