18-position, 2-row shrouded header receptacle with a 3.5mm pitch, designed for right-angle, through-hole PCB mounting. Features brass contacts with tin plating, a white housing, and a maximum DC voltage rating of 12V. Suitable for signal applications, operating within a temperature range of -22°C to 221°C. Compliant with RoHS and ELV directives, and rated UL94 HB for flammability.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 173862-1 technical specifications.
General
Circuit Application
Signal
Color
White
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Type
Tab
Depth
24.7mm
ELV
Compliant
Flammability Rating
UL94 HB
Gender
Female
Housing Color
White
Lead Free
Lead Free
Length
24.92mm
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Max Voltage Rating (DC)
12V
Mount
Through Hole
Number of Contacts
18
Number of Positions
18
Number of Rows
2
Number of Signal Positions
18
Orientation
Right Angle
Package Quantity
40
Packaging
Bulk
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Thickness
1.6mm
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.232inch
Sealable
No (Without)
Series
Multi-Lock
Shielding
Unshielded
Tab Thickness
0.64mm
Tab Width
0.071inch
Termination
Solder
Width
56.8mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 173862-1 Datasheet
Download the complete datasheet for TE Connectivity 173862-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

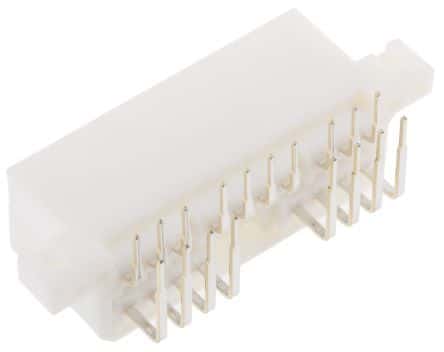

Product Images
