8-position, 2-row signal connector with a 2.5mm pitch and 1mm mating tab width. Features a straight, male, wire-to-device connector system with female socket contacts. Constructed with PBT body material and a black housing, this free-hanging, cable-mount connector operates within a temperature range of -22°C to 221°C. It is RoHS and ELV compliant, with a UL94 HB flammability rating.
MountingFree Hanging, Cable
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 174044-2 technical specifications.
General
Body Material
PBT
Circuit Application
Signal
Color
Black
Connector System
Wire-to-Device
Contact Type
Female Socket
Depth
18.5mm
ELV
Compliant
Flammability Rating
UL94 HB
Gender
Male
Height
0.744inch
Housing Color
Black
Hybrid Connector
No
Lead Free
Lead Free
Length
0.728inch
Mating Tab Width
1mm
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Mount
Free Hanging, Cable
Number of Contacts
8
Number of Positions
8
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
2.5mm
Polarized
Yes
Primary Type
CONNECTOR
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.236inch
Sealable
No (Without)
Series
MULTILOCK 040
Serviceable
Yes
Strain Relief
No (Without)
Termination
Crimp
Width
0.551inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 174044-2 Datasheet
Download the complete datasheet for TE Connectivity 174044-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

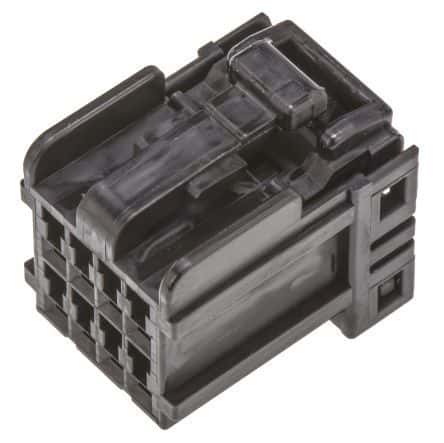

Product Images
