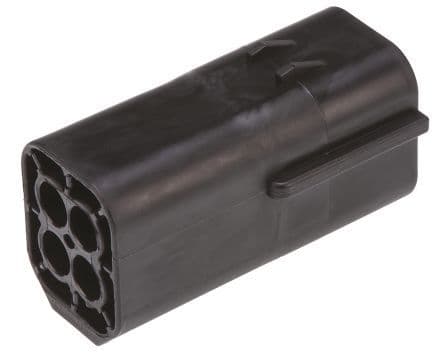

4-position, 2-row straight female connector for wire-to-wire signal applications. Features PBT body material, black housing color, and male pin contact type. With a 4.8mm pitch and 1.8mm mating tab width, this free-hanging connector operates between -22°C and 221°C. It is sealable, polarized, and designed for crimp termination, supporting wire gauges from 16AWG to 24AWG.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 174259-2 technical specifications.
General
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Male Pin |
| Depth | 35.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Height | 0.811inch |
| Housing Color | Black |
| Hybrid Connector | No |
| Lead Free | Not Applicable |
| Length | 35.5mm |
| Mating Tab Width | 1.8mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Mount | Free Hanging |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 4.8mm |
| Polarized | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.118inch |
| Sealable | Yes (With) |
| Series | EconoSeal J Mark II 070 |
| Serviceable | Yes |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 0.72inch |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 174259-2 Datasheet
Download the complete datasheet for TE Connectivity 174259-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
