6-position, 2-row, straight, female, wire-to-wire connector with male pin contacts. Features a PBT body, black color, and 4.8mm pitch with 0.118 inch row spacing. Operates within a temperature range of -22°C to 221°C and offers UL94 V-2 flammability rating. This free-hanging, polarized connector is sealable and designed for signal circuit applications with crimp termination.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 174264-2 technical specifications.
General
Body Material
PBT
Circuit Application
Signal
Color
Black
Connector System
Wire-to-Wire
Contact Type
Male Pin
Depth
35.5mm
Flammability Rating
UL94 V-2
Gender
Female
Height
0.811inch
Hybrid Connector
No
Length
35.5mm
Mating Tab Width
1.8mm
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Mount
Free Hanging
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
4.8mm
Polarized
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.118inch
Sealable
Yes (With)
Series
EconoSeal J Mark II 070
Serviceable
Yes
Strain Relief
No (Without)
Termination
Crimp
Width
23.1mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 174264-2 Datasheet
Download the complete datasheet for TE Connectivity 174264-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

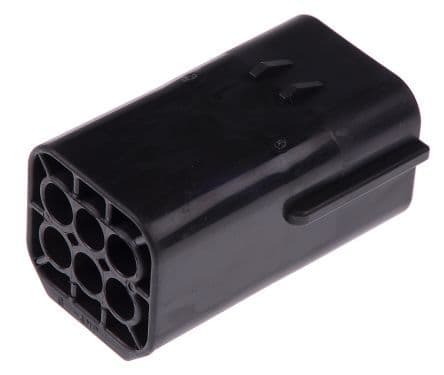

Product Images
