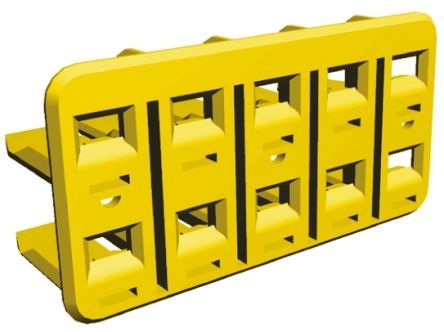

The EconoSeal J Mark II 070 is a 10-position wire-to-wire connector with a yellow PBT material and a 5mm pitch. It has a maximum operating temperature of 221°C and a minimum operating temperature of -22°C. The connector is compliant with ELV and RoHS regulations and is packaged in bags of 1000 units. It measures 24.2mm in length and 10.1mm in depth, with a straight orientation. The connector is not radiation hardened and is not lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 174656-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Yellow |
| Connector System | Wire-to-Wire |
| Depth | 10.1mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Lead Free | Not Applicable |
| Length | 24.2mm |
| Material | PBT |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Pitch | 5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | EconoSeal J Mark II 070 |
| Serviceable | Yes |
| RoHS | Compliant |
