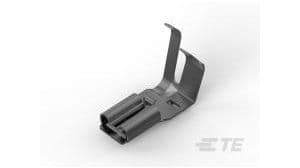

This quick disconnect terminal is a female receptacle designed for 10-12 AWG discrete wire. Featuring a brass contact material with tin plating, it offers a 6.35mm mating tab width and a 0.307-inch tab length. The terminal supports insulated wire with a 4.9mm insulation diameter and operates within a temperature range of -40°C to 105°C. Packaged on tape and reel, this non-insulated component is RoHS compliant and suitable for free-hanging mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 175178-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Brass |
| Contact Plating | Tin |
| ELV | Compliant |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 4.9mm |
| Lead Free | Not Applicable |
| Length | 0.82inch |
| Material | Brass |
| Mating Tab Width | 6.35mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Positive Lock EX |
| Tab Length | 0.307inch |
| Tab Thickness | 0.032inch |
| Tab Width | 0.25inch |
| Termination | Receptacle |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Diameter | 0.193inch |
| Wire/Cable Type | Discrete |
| RoHS | Compliant |
