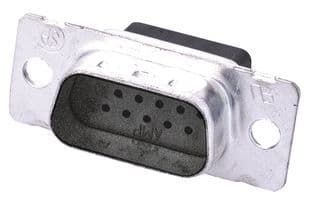

9-position, 2-row male D-subminiature connector with straight orientation and crimp termination. Features copper alloy contacts with gold plating for signal applications, rated for 7.5A current. Constructed with a steel shell and metal body, it offers a temperature range of -55°C to 125°C and is RoHS compliant. Designed for panel mounting and free hanging, this connector is suitable for automotive packages.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1757819-6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1757819-6 technical specifications.
| Body Material | Metal |
| Circuit Application | Signal |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Style | Crimp |
| Contact Type | Signal |
| Current Rating | 7.5A |
| Depth | 16.59mm |
| Dielectric Material | Polyester |
| ELV | Compliant |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 31.19mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Panel |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Steel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Military, MIL-DTL-24308, AMPLIMITE 109 |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Crimp |
| Width | 12.93mm |
| RoHS | Compliant |
