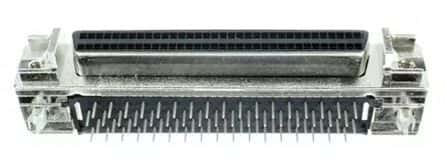

68 Pos Signal R/A Receptacle, Steel, Gold Contacts, Through Hole

TE Connectivity

1761028-4

Name: 1761028-4 TE Connectivity
Brand: TE Connectivity
SKU: 1761028-4

68 Pos Signal R/A Receptacle, Steel, Gold Contacts, Through Hole

Shielded, right-angle receptacle with 68 signal contacts on a 2.54mm row spacing and 0.05inch pitch. Features a steel body with tin plating and a thermoplastic dielectric, operating from -55°C to 105°C. Designed for through-hole mounting with solder termination, offering mating alignment, connector lock, and retention. This lead-free component is RoHS compliant and rated for 30V.

Voltage Rating30V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1761028-4 technical specifications.

General

Body Material	Steel
Body Plating	Tin
Circuit Application	Signal
Color	Black
Contact Material	Bronze
Contact Plating	Gold
Contact Post Length	0.1inch
Contact Type	Signal
Depth	16.87mm
Dielectric Material	Thermoplastic
Features	Shielded
Flammability Rating	UL94 V-0
Gender	Female
Height	9.5mm
Housing Color	Black
Lead Free	Lead Free
Length	63.88mm
Material	Thermoplastic
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	68
Number of Ports	1
Number of Positions	68
Number of Rows	2
Orientation	Right Angle
Package Quantity	8
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	0.05inch
Plating	Bright, Tin
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Sealable	No (Without)
Series	AMPLIMITE .050 III
Shell Material	Steel
Shell Size	A
Shielding	Shielded
Termination	Solder
Voltage Rating	30V
Width	9.5mm
