Right-angle, female I/O connector with 100 signal contacts on a 0.05-inch pitch, featuring gold-plated bronze contacts and a steel shell. This shielded connector offers through-hole mounting with a 1.57mm PCB thickness compatibility and a 30V voltage rating. Designed for telecom and datacom applications, it operates within a -55°C to 105°C temperature range and is UL94 V-0 flammability rated.
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1761028-5 technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Contact Post Length
0.1inch
Contact Type
Signal
Depth
16.87mm
Dielectric Material
Thermoplastic
ELV
Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
84.2mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
100
Number of Ports
1
Number of Positions
100
Number of Rows
2
Orientation
Right Angle
Package Quantity
6
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.05inch
Plating
Bright, Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE .050 III
Shell Material
Steel
Shell Size
A
Shielding
Shielded
Strain Relief
Straight
Termination
Solder
Voltage Rating
30V
Width
9.5mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1761028-5 Datasheet
Download the complete datasheet for TE Connectivity 1761028-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

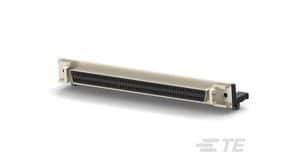

Product Images
