Female SFP dust cover, straight orientation, black thermoplastic construction with UL94 V-0 flammability rating. Designed for assembly of ganged and stacked connectors, supporting data rates up to 4Gbps. Features a 13.8mm length and 14mm depth. Supplied in a bag of 100 units, this RoHS compliant component is not radiation hardened or sealable.
Quick Jump:
Technical Specifications
TE Connectivity 1761394-1 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Data Rate | 4Gbps |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Length | 13.8mm |
| Material | Thermoplastic |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1761394-1 Datasheet
Download the complete datasheet for TE Connectivity 1761394-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

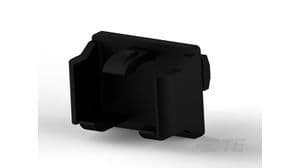

Product Images
