1761681-9

Datasheet

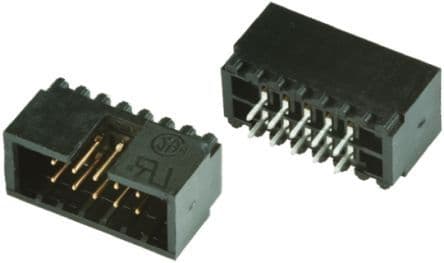

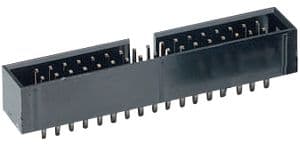

26 Pos 2 Row 2.54mm Pitch IDC Header, Male, 1A, Black

TE Connectivity

1761681-9

Name: 1761681-9 TE Connectivity
Brand: TE Connectivity
SKU: 1761681-9

Active

26 Pos 2 Row 2.54mm Pitch IDC Header, Male, 1A, Black

26-position, 2-row, straight, male pin header for wire-to-board applications. Features a 2.54mm pitch and a 1A contact current rating. Constructed with bronze contacts plated in gold and tin, offering a 0.24-inch mating length and 2.9mm contact post length. The black, UL94 V-0 rated housing supports through-hole mounting and operates within a -65°C to 105°C temperature range, with a maximum voltage rating of 250V.

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Board Standoff	No (Without)
Circuit Application	Signal
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	0.24inch
Contact Plating	Gold, Tin
Contact Post Length	2.9mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	9.22mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	0.35inch
Housing Color	Black
Lead Length	2.9mm
Lead Pitch	2.54mm
Length	1.6inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	26
Number of Positions	26
Number of Rows	2
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	50
Packaging	Bulk
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
