10 Pos 2.54mm RA Shrouded Header, Gold, 1A, 250V, Thru-Hole

TE Connectivity

1761682-3

Name: 1761682-3 TE Connectivity
Brand: TE Connectivity
SKU: 1761682-3

10 Pos 2.54mm RA Shrouded Header, Gold, 1A, 250V, Thru-Hole

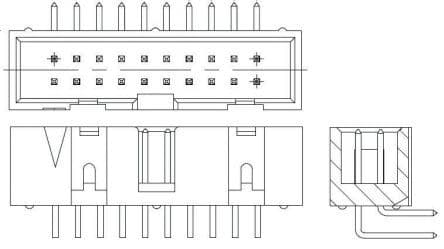

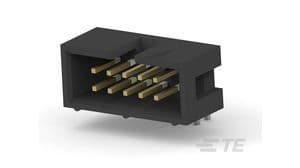

Shrouded header, 10 positions, 2.54mm pitch, right-angle through-hole mounting. Features male pin contacts with gold mating finish and bronze material, rated for 1A current and 250V voltage. Black housing made from Polycyclohexylenedimethylene insulation, with a UL94 V-0 flammability rating. Operates within a -65°C to 105°C temperature range.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 1761682-3 technical specifications.

General

Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	GOLD
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	0.24inch
Contact Plating	Gold, Tin
Contact Post Length	2.9mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	12.19mm
Flammability Rating	UL94 V-0
Height	0.35inch
Housing Color	Black
Insulation Material	Polycyclohexylenedimethylene
Lead Pitch	2.54mm
Length	0.8inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Orientation	Right Angle
Package Quantity	50
Packaging	Bulk
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
