1766308-1

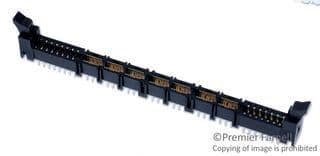

This **female header receptacle** is designed for **board-to-board** applications, featuring a **2.5mm pitch** and **46 positions** with **2 rows**. It supports **through-hole mounting** and a **vertical PCB mounting orientation** for **3.175mm board thickness**. The component offers a **25A contact current rating** and a **250V voltage rating**, with **copper alloy contacts** plated in **gold and tin** for reliable power and signal transmission. It operates within a **-55°C to 105°C temperature range** and boasts **UL94 V-0 flammability rating** and **CSA approval**.
