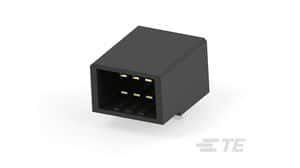

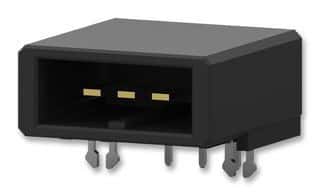

Right-angle wire-to-board power connector featuring a 6-position configuration with a 3.8mm pitch. This shrouded connector utilizes copper alloy tab contacts with gold plating for mating, offering a 9.5A current rating and a 250V voltage rating. Designed for through-hole mounting on PCBs, it includes mating alignment and retention features. Constructed with a black glass-filled nylon housing, it meets UL94 V-0 flammability standards and is RoHS compliant.
Voltage Rating250V
Current Rating9.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 178303-3 technical specifications.
General
Approvals
UL
Connector System
Wire-to-Board
Contact Current Rating
9.5A
Contact Finish - Mating
GOLD
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Retention
No (Without)
Contact Shape
Rectangular
Contact Type
Tab
Current Rating
9.5A
Depth
25.91mm
ELV
Compliant
Flammability Rating
UL94 V-0
Halogen Free
Halogen Free
Height
14.43mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Glass
Lead Free
Lead Free
Length
0.851inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Right Angle
Package Quantity
23
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.063inch
Pitch
0.149inch
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic D-3100
Shielding
Unshielded
Shrouded
Yes (With)
Strain Relief
No (Without)
Tail Length
3.8mm
Termination
Solder
VDE Tested
No
Voltage Rating
250V
Width
25.91mm
Compliance
RoHS
Compliant
