Technical Specifications

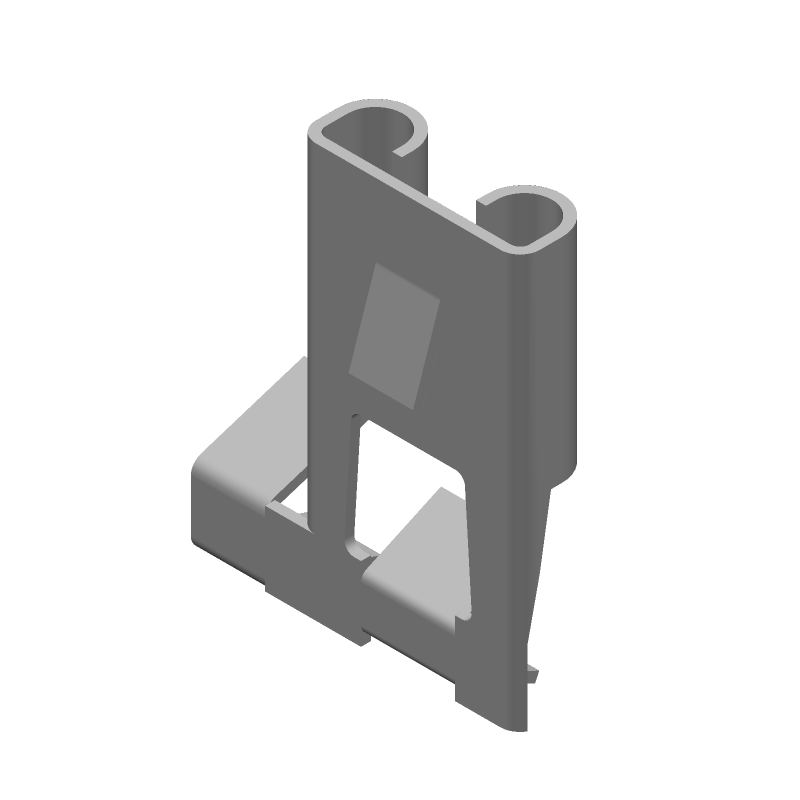

TE Connectivity 180373-2 technical specifications.
General
| Contact Plating | Tin |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.15inch |
| Length | 0.728inch |
| Mating Tab Width | 7.92mm |
| Mount | Free Hanging |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Plating Thickness | 1um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Tab Length | 0.339inch |
| Tab Thickness | 0.032inch |
| Tab Width | 0.312inch |
| Termination | Receptacle |
| Wire Gauge (Max) | 17AWG |
| Wire Gauge (Min) | 13AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 180373-2 Datasheet
Download the complete datasheet for TE Connectivity 180373-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
