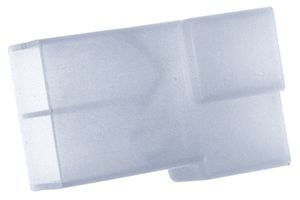

2-position, 1-row, straight, free-hanging receptacle with 6.35mm tab width. Features brass contacts with tin plating, a nylon and glass fiber body, and a natural housing color. Rated for 28A current and operates up to 105°C. UL94 V-2 flammability rating and RoHS compliant.
Current Rating28A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 180908 technical specifications.
General
| Body Material | Nylon, Glass fibre |
| Color | Natural, Beige, Clear |
| Contact Gender | Female |
| Contact Material | Brass, Tin |
| Contact Plating | Tin |
| Current Rating | 28A |
| Depth | 31.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| Lead Free | Not Applicable |
| Length | 31.5mm |
| Material | Polyamide |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 105°C |
| Mount | Free Hanging |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Box |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Tab Width | 6.35mm |
| Termination | Quick Connect |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 180908 Datasheet
Download the complete datasheet for TE Connectivity 180908 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
