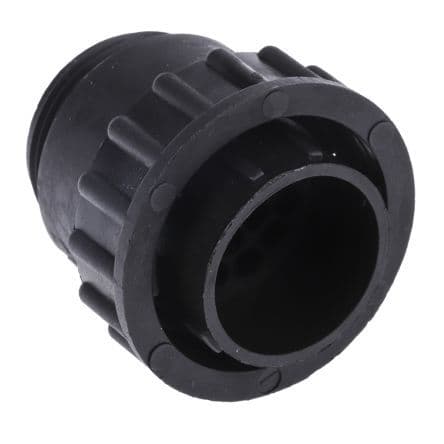

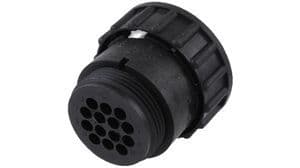

14-position, male circular connector plug with straight orientation and crimp termination. Features a thermoplastic shell, glass-filled thermoplastic body, and black housing. Rated for 13A current and 600V voltage, operating between -55°C and 105°C. Includes mating alignment and retention, with UL94 V-0 flammability rating.
Voltage Rating600V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 182649-1 technical specifications.
General
Body Material
Glass, Thermoplastic
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Style
Pin
Contact Type
CRIMP
Current Rating
13A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
34mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Cable
Number of Contacts
14
Number of Ports
1
Number of Positions
14
Number of Signal Positions
14
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
100
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 1
Shell Material
Thermoplastic
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 182649-1 Datasheet
Download the complete datasheet for TE Connectivity 182649-1 to view detailed technical specifications.
