Four-position, male circular receptacle connector for wire-to-wire applications. Features a black nylon, glass, and polyamide body with a thermoplastic shell. Offers 13A current rating, IP65 sealing, and operates within a -55°C to 105°C temperature range. Includes contact protection and mating alignment with crimp termination.
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 182651-1 technical specifications.
General
Body Material
Nylon, Glass, Polyamide
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Type
CRIMP
Current Rating
13A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Signal Positions
4
Orientation
Straight
Package Quantity
100
Packaging
Bag
Primary Type
CONNECTOR
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 1
Shell Material
Thermoplastic
Shell Size
11
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 182651-1 Datasheet
Download the complete datasheet for TE Connectivity 182651-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

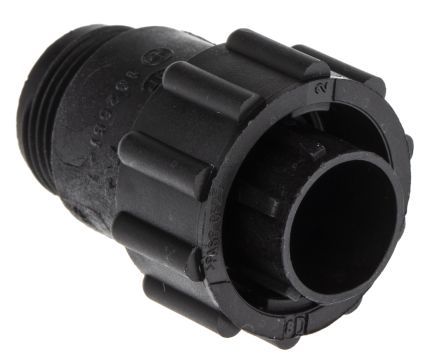

Product Images
