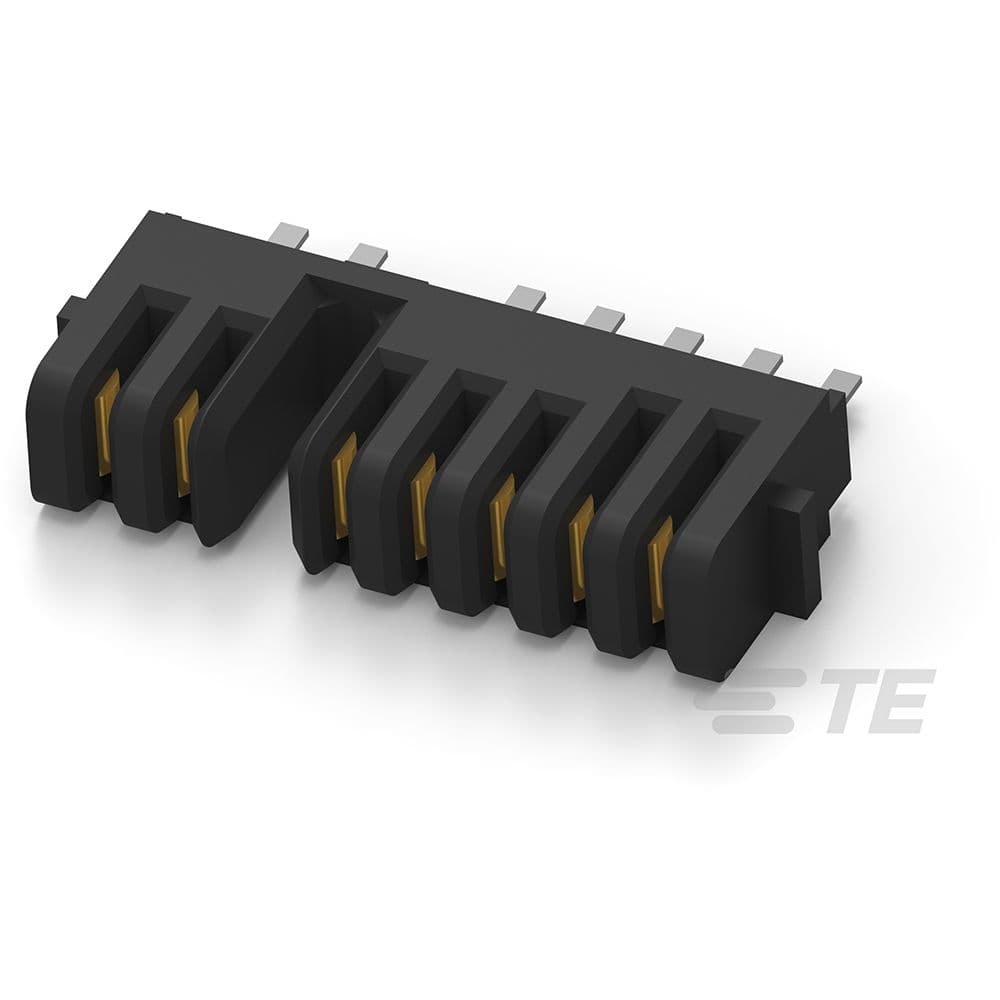

7-position, 1-row battery receptacle assembly featuring a 2mm pitch and 0.079-inch spacing. This straight, right-angle header assembly utilizes a copper alloy contact material with gold plating for reliable connectivity. Designed for through-hole and surface mount applications, it boasts a maximum current rating of 6A and operates within a temperature range of -40°C to 70°C. The black thermoplastic housing offers UL94 V-0 flammability rating and is RoHS compliant.
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1827684-1 technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Material | Thermoplastic |
| Max Current Rating | 6A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Surface Mount |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 72 |
| Packaging | Tray |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Right Angle |
| Pitch | 0.079inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1827684-1 Datasheet
Download the complete datasheet for TE Connectivity 1827684-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
