M8/M12 connector system for sensors, featuring a 5-meter black PVC cable assembly with 3 conductors and 3 positions. This male plug offers a 5A current rating and 500V voltage rating, with gold-plated brass contacts for reliable connectivity. The assembly boasts IP67 environmental protection and a durable PUR jacket, operating within a -20°C to 80°C temperature range.
Voltage Rating500V
Current Rating5A
Quick Jump:
Technical Specifications
TE Connectivity 1838236-3 technical specifications.
General
| Body Plating | Gold |
| Color | Black |
| Conductor Diameter | 0.645mm |
| Connector Type A | Plug, M12, Circular |
| Contact Material | Brass, Gold |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 5A |
| ELV | Compliant |
| Environmental Protection | Yes (With) |
| Gender | Male |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Not Applicable |
| Lead Length | 5m |
| Length | 5m |
| Material | PUR |
| Max Current Rating | 5A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Number of Conductors | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Outside Diameter | 14.4mm |
| Package Quantity | 20 |
| Packaging | Bag |
| Primary Type | Sealed |
| Radiation Hardening | No |
| Ratings | IP67 |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 500V |
| Wire/Cable Color | Black |
| Wire/Cable Diameter | 5mm |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | PVC |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1838236-3 Datasheet
Download the complete datasheet for TE Connectivity 1838236-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

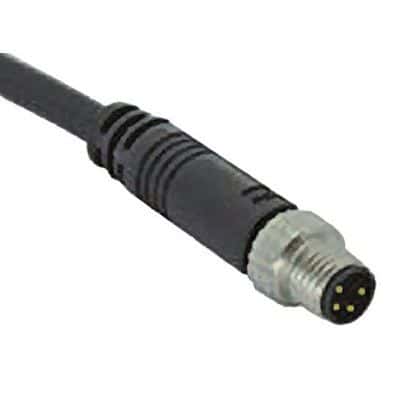

Product Images
