Assembly tool for wire-to-wire connector systems, featuring a straight, male tab contact made of gold-plated copper alloy with nickel underplate. Designed for discrete wire termination with a crimp method, supporting wire gauges from 18AWG to 22AWG. Offers a contact current rating of 3A and a maximum operating temperature of 221°C. This component is RoHS and ELV compliant, with a UL94 V-0 flammability rating.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1903118-2 technical specifications.
General
Connector System
Wire-to-Wire
Contact Current Rating
3A
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Retention
Yes (With)
Contact Type
Tab
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Insulation Diameter
0.087inch
Length
0.537inch
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Bag
RoHS Compliant
Yes
Series
Dynamic D-1000
Shielding
Unshielded
Termination
Crimp
Underplate Material
Nickel
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
18AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1903118-2 Datasheet
Download the complete datasheet for TE Connectivity 1903118-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

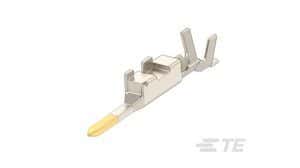

Product Images
