1934221-1

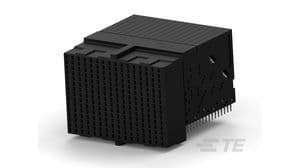

Right-angle, female board-to-board header receptacle with a 0.075-inch pitch and 15 rows, featuring 16 columns and 240 positions for 160 signal contacts. This component supports differential signaling with 5 differential pairs per column, achieving data rates up to 10Gbps. It offers a contact current rating of 500mA and a voltage rating of 250V AC, with bronze contacts plated in gold, tin, and matte finishes. The black housing is UL94 V-0 flammability rated and operates within a temperature range of -65°C to 90°C. Termination is via press-fit, with PCB mounting retention and a 2.2mm tail length.
