150 Pos 10Gbps Press-Fit Header, Straight, 1.9mm Pitch, 250V

TE Connectivity

1934326-1

Name: 1934326-1 TE Connectivity
Brand: TE Connectivity
SKU: 1934326-1

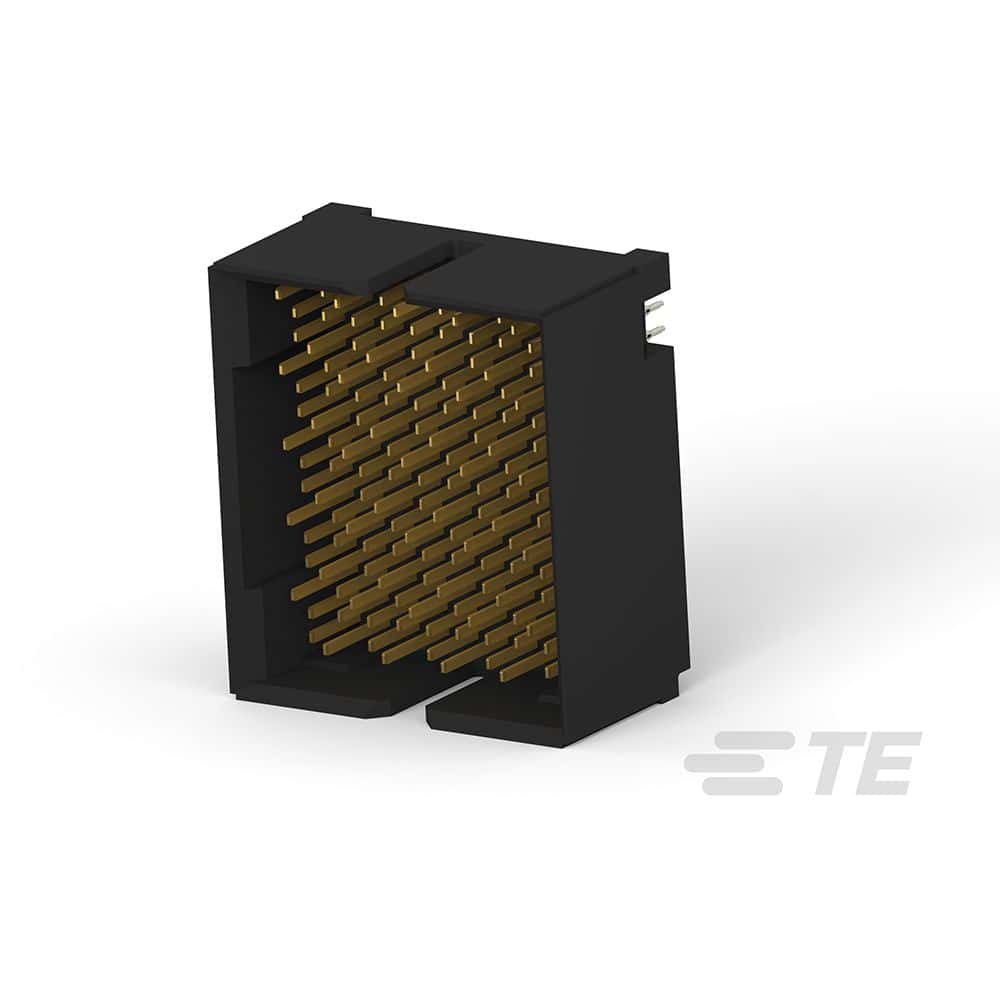

150 Pos 10Gbps Press-Fit Header, Straight, 1.9mm Pitch, 250V

150-position, straight, male backplane header with a 1.9mm pitch. Features press-fit termination and through-hole mounting for vertical PCB mounting. Supports 10Gbps data rates with differential signaling and 100 Ohm impedance. Contact material is bronze with gold, tin, and matte plating. Housing color is black, with a maximum operating temperature of 90°C.

Voltage Rating250V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1934326-1 technical specifications.

General

Approvals	UL
Color	Black
Connector System	Board-to-Board
Contact Current Rating	500mA
Contact Material	Bronze
Contact Plating	Gold, Tin, Matte
Contact Style	Press-Fit
Data Rate	10Gbps
Differential Pairs per Column	5
Differential Signaling	Yes
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Guide Hardware	No (Without)
Height	11.8mm
Housing Color	Black
Impedance	100R
Length	15.35mm
Make First / Break Last	No
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	90°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Columns	10
Number of Contacts	150
Number of Pairs	50
Number of Positions	150
Number of Rows	15
Number of Signal Positions	100
Orientation	Straight
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	0.075inch
Plating Thickness	0.76um
RoHS Compliant	Yes
Row Spacing	0.098inch
Sealable	No (Without)
Series	Z-PACK TinMan
Shrouded	Fully
Stackable	No
Tail Length	2.5mm
Termination	Press-Fit
Voltage Rating	250V
Width	24.4mm
